Push Lock Jnicon IP67 Waterproof Connector , New Design Electrical M12 Connector
Introduction / Characterization
IP67 waterproof connector belongs to M12 series aviation connector in our company . People also call it male to female connector , cable waterproof connetor , quick lock connector . At the beginning , it's named aviation connector , Coupler .
As the original manufacturer , we can provide the great connector with best price . So this connector is so competitive in the global market . and wildly use in different lighting envrionment .
M12 IP67 waterproof connector belongs to molded with cable connector , there is no assembly field connector . so when you want the cable connector , this type waterproof lighting connector is best choice .
If you want the assembly field connector , just contact me , there are also many other type connector in our company , assembly field connector , screw terminal connector etc .
Parameter of M12 IP67 Waterproof Connector
| Specification |
| Product name | M12 connector |
| Current / Voltage | 10A / 300V |
| Withstanding voltage | 1000V |
| Cable Specification | 0.5mm-1.5mm2 ( 16AWG - 20AWG) |
| Diameter range / OD | MAXφ9.0mm |
| Operating temperature | -40℃ - 105℃ |
| Connecting mode | Qick - locking |
| Material |
| Contact Plating | gold plating |
| Contact | Brass |
| Shell , insulating parts / Housing | High-performance engineering plastics |
| Environmental |
| Flammability | UL 94V-0 |
| Operation temperature range | -30℃~+80℃ |
| Protection level | IP67 |
| Contact Way |
| Connecting mode | Screw Type / Push Lock |
| Method of connecting wire | Solder / Weld |

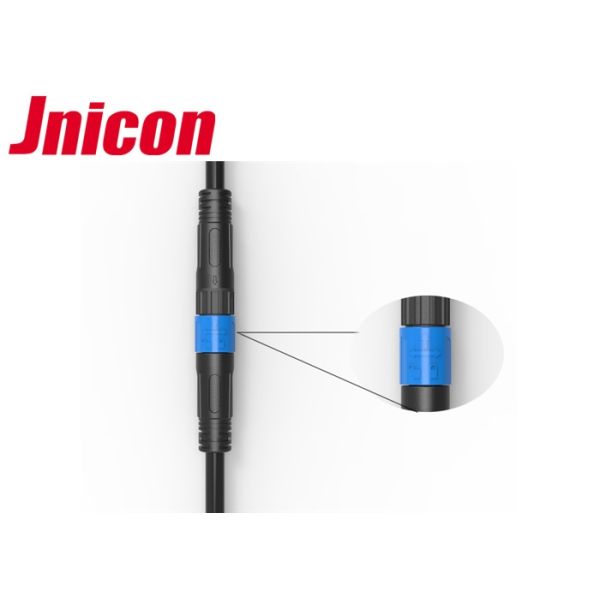

Picture Show - 2pin / 3pin / 4pin / 5pin
- There are also many other IP67/ IP68 waterproof connector in our company
- Current : 10A , 20A , 30A , 50A
- Voltage : 300V / 500V
- Color of lock ring is optional : black , yellow , blue , white , gray
- Just feel free to tell me your requirement , I will recommand the corresponding product for you
Service
Q : I am interested in your connectors .
A : Yes , please confirm the information as follow :
- The curren and voltage in the datasheet . if it can meet your requirement . if not , please tell you request .
- Confirm the cable specification
Q : Is there any other number of pins
A : There are not only 3pin , but also 2pin , 4pin , 5pin , 6pin ... even 2+20 pin
Q : Where is your company ?
A : We are the factory located in shenzhen guandong , China .
Payment Method
- Usually pay for the payment by T / T , Paypal
- L/C , D/A , D/P , Western Union are optional
- In general , we arrange production after payment
- Payment currency : US dollars or RMB
